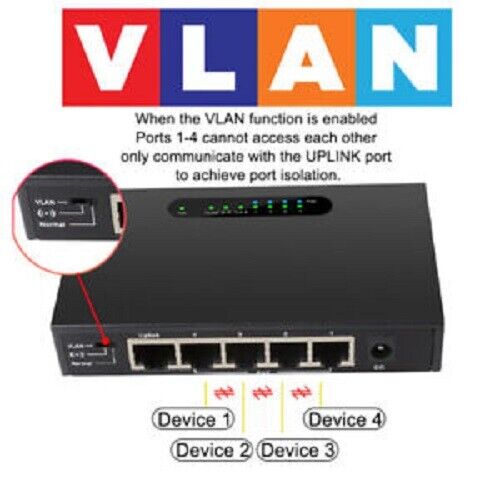

POE switch ethernet RJ45 802.3af/at Extender POE Network Switch 100M VLAN Manage

5-port RJ45 for 10/100BASE-TX, auto MDI/MDIX

4-port with 802.3af/at PoE injector function (Port 1 to Port 4)

System:
Power (Green)
Per PoE port:
PoE (Red/Blue, Port 1 to Port 4)
LNK/ACT (Green, Port 1 to Port 5)

Store and Forward switch architecture

Back pressure for half duplex. IEEE 802.3x pause frame for full duplex

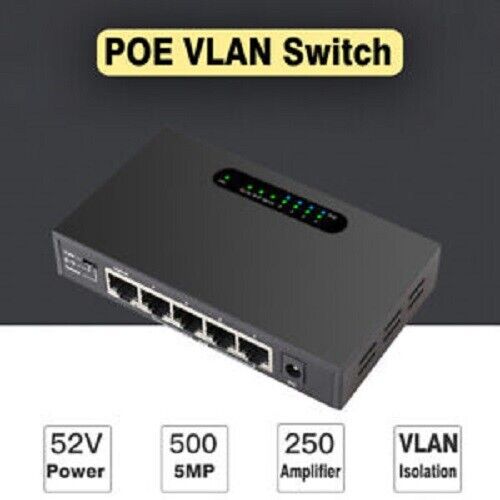

52V DC, 1.25A or 52V0.92A

Max. 65watts

IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE

Per Port max. 15.4 watts (IEEE 802.3af)
Per Port. max. 30 watts (IEEE 802.3at)

IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus

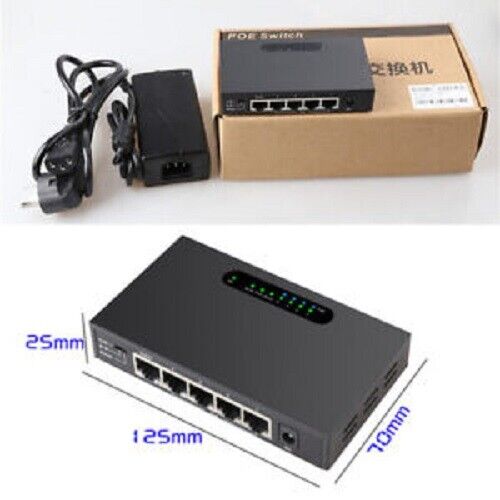

124*72*24 mm
