POE switch ethernet RJ45 802.3af/at Extender POE Network Switch 100M VLAN Manage

$40.20

SKU: BI33@LH Category:

Description

POE switch ethernet RJ45 802.3af/at Extender POE Network Switch 100M VLAN Manage


4 Port POE Network Switch With 1 Port Uplink POE Switch 10/100Mbps



Model TXE104

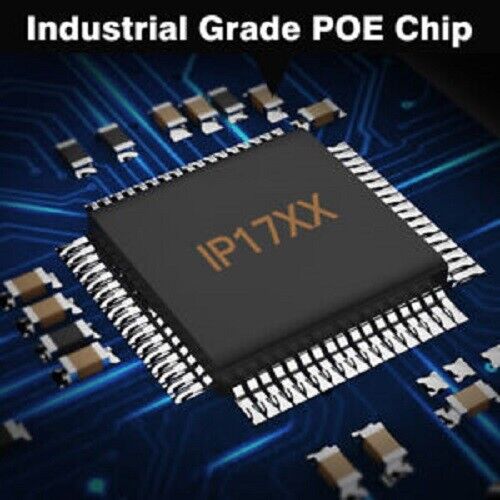

Chipset ICPlus IP175G+IP804
Network connector

5-port RJ45 for 10/100BASE-TX, auto MDI/MDIX
POE inject port

4-port with 802.3af/at PoE injector function (Port 1 to Port 4)
LED Display

System:
Power (Green)
Per PoE port:
PoE (Red/Blue, Port 1 to Port 4)
LNK/ACT (Green, Port 1 to Port 5)
Switch Architecture

Store and Forward switch architecture
Flow control

Back pressure for half duplex. IEEE 802.3x pause frame for full duplex
Power requirements

52V DC, 1.25A or 52V0.92A
Power consumption

Max. 65watts
POE standard

IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
POE Power output

Per Port max. 15.4 watts (IEEE 802.3af)
Per Port. max. 30 watts (IEEE 802.3at)
Standard compliance

IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Dimension

124*72*24 mm
