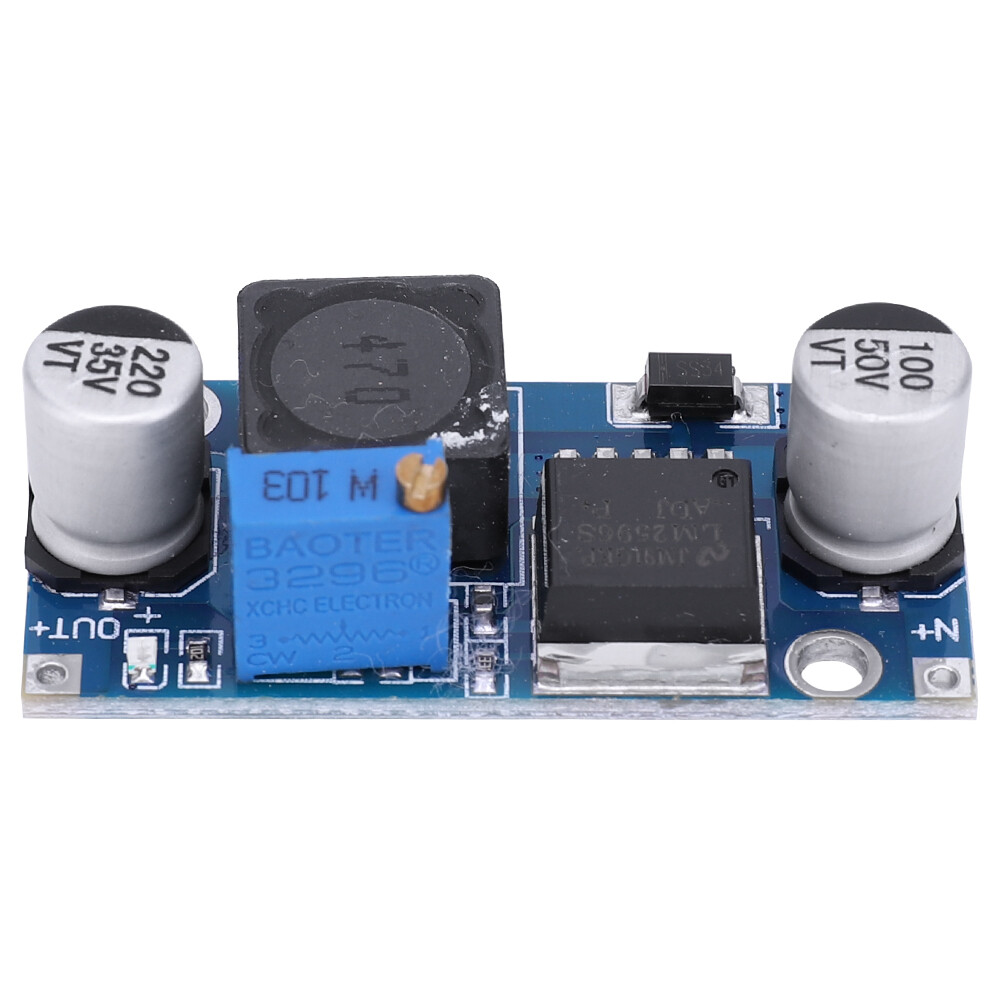

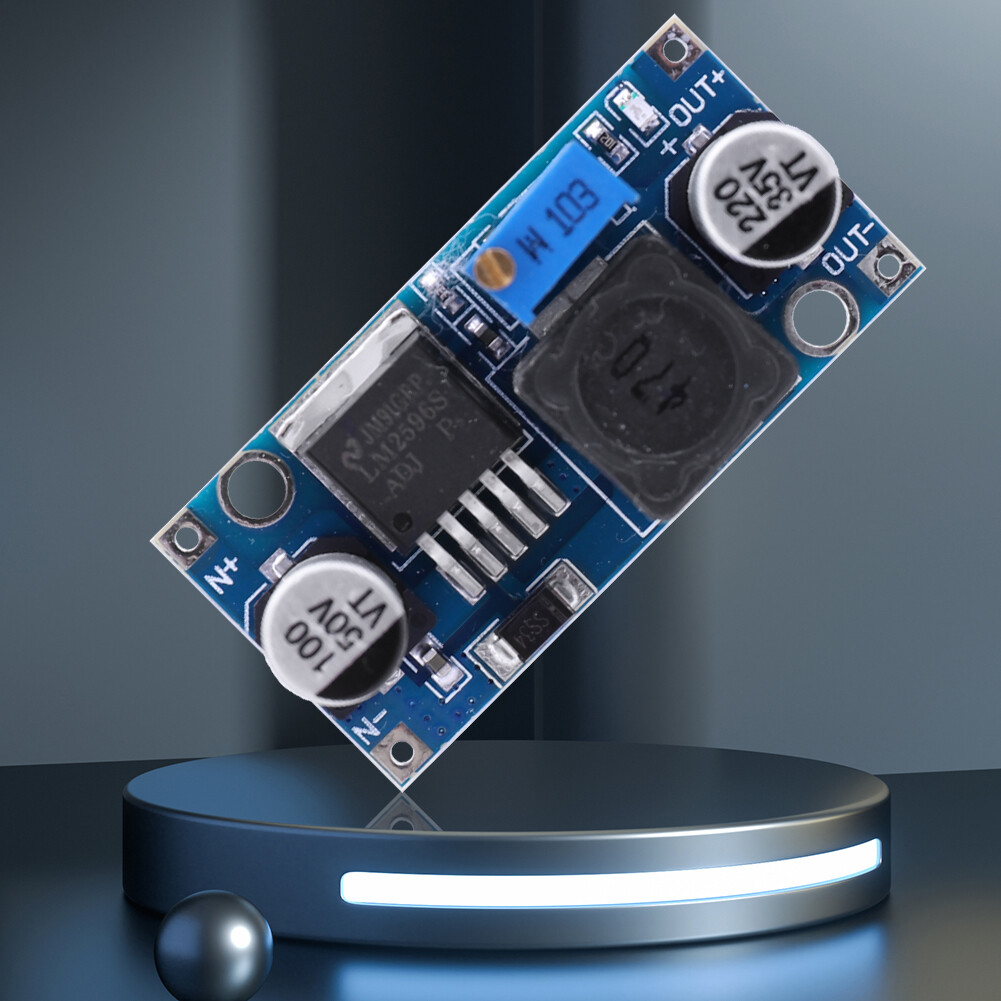

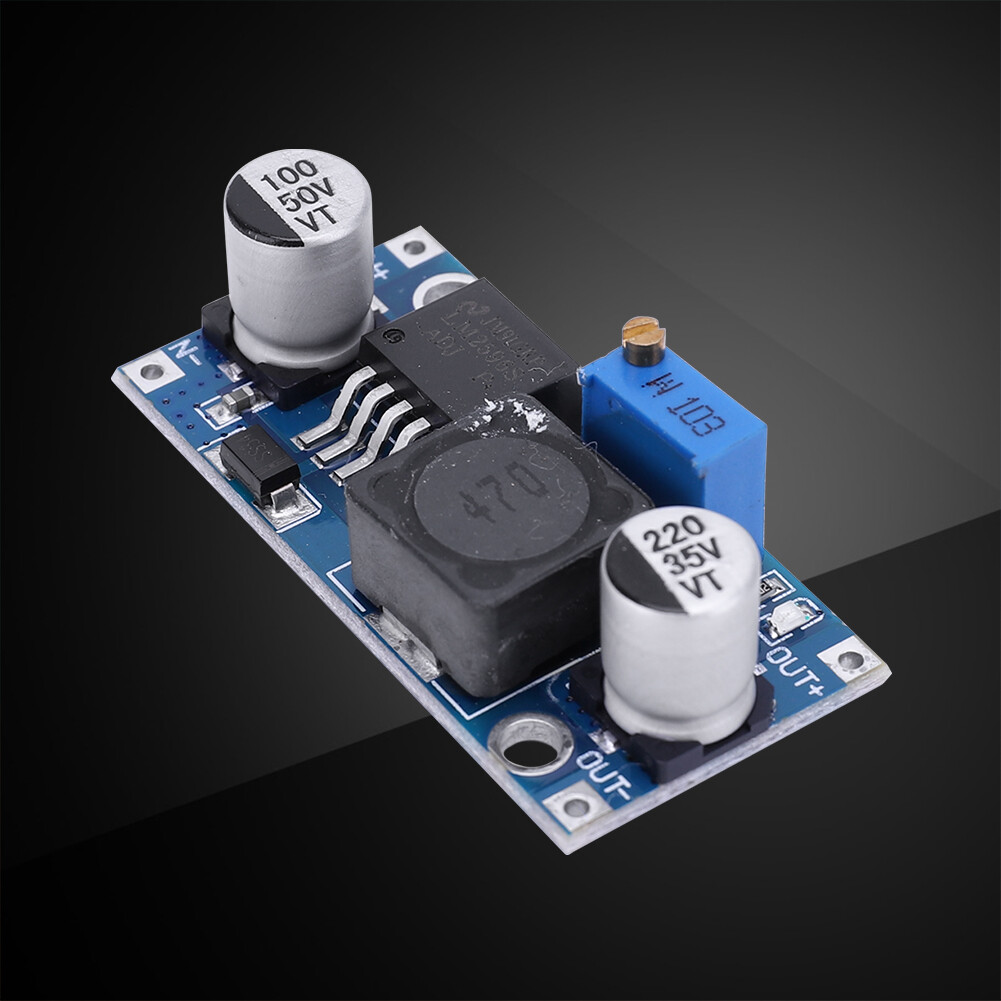

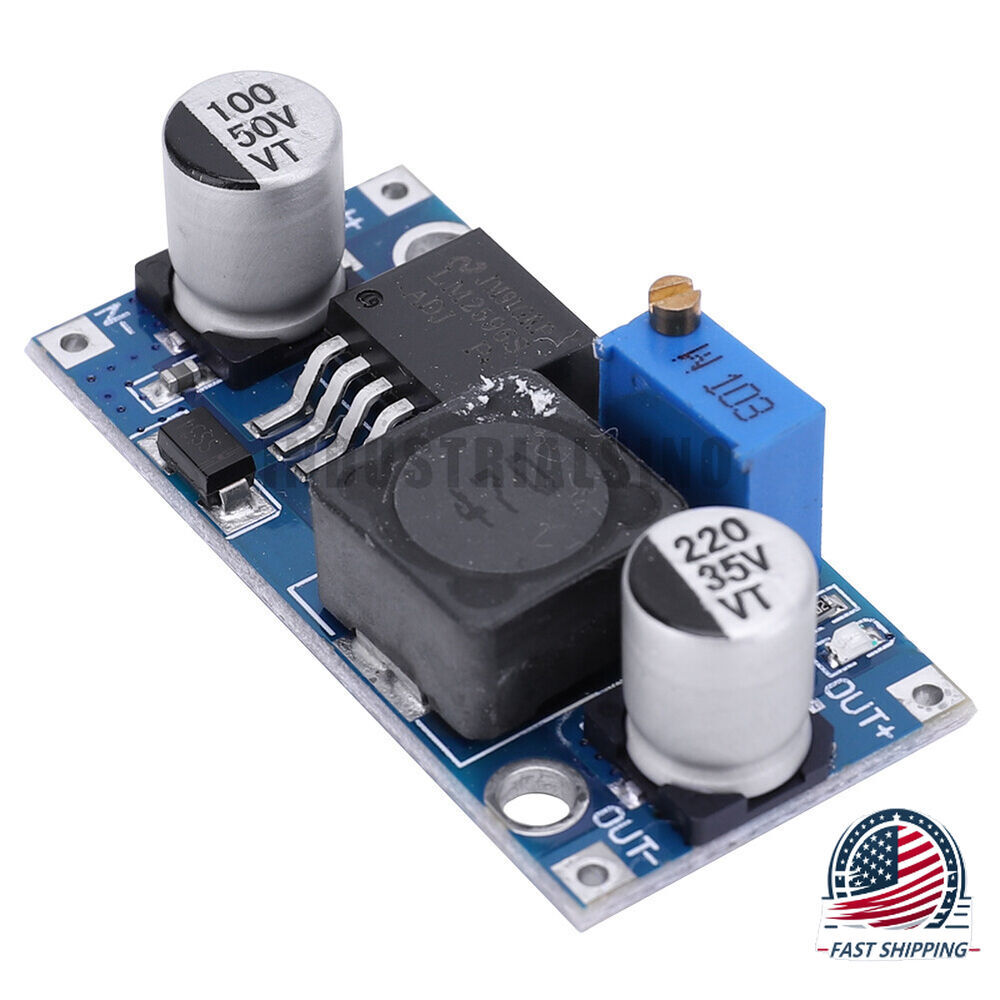

LM2596S DC-DC Step-Down Power Supply Module
Description: The LM2596S is a highly efficient, adjustable DC-DC step-down converter module, suitable for a wide range of applications requiring stable voltage regulation.
Specifications:
- Model: LM2596S DC-DC Step-Down Module
- Input Voltage Range: 3.2V to 40V (The input voltage must be at least 1.5V higher than the output voltage)
- Output Voltage Range: Adjustable from 1.25V to 35V
- Output Current: Up to 3A
- Conversion Efficiency: Up to 92%
- Output Ripple: Less than 30mV
- Switching Frequency: 65KHz
- Operating Temperature: -45℃ to +85℃

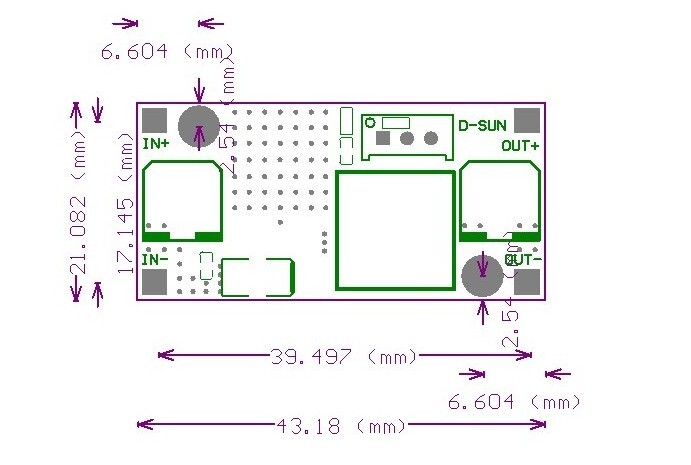

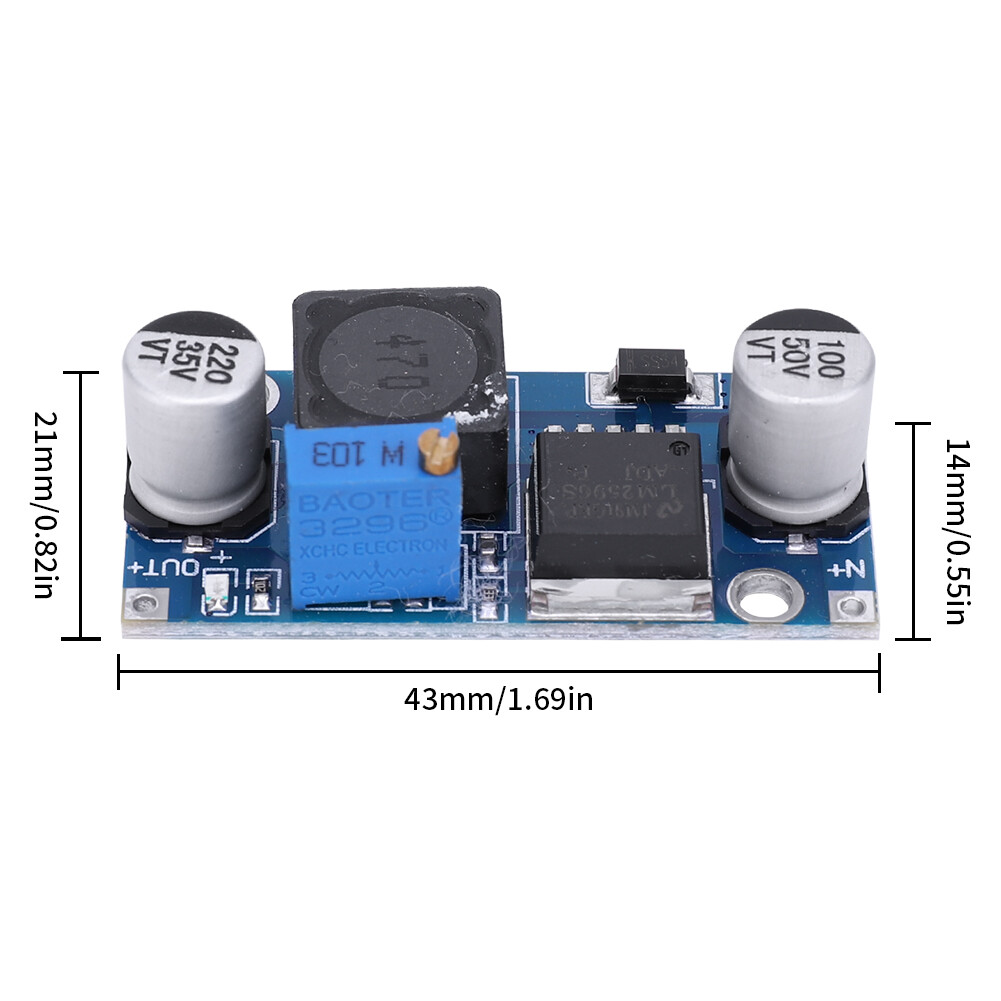

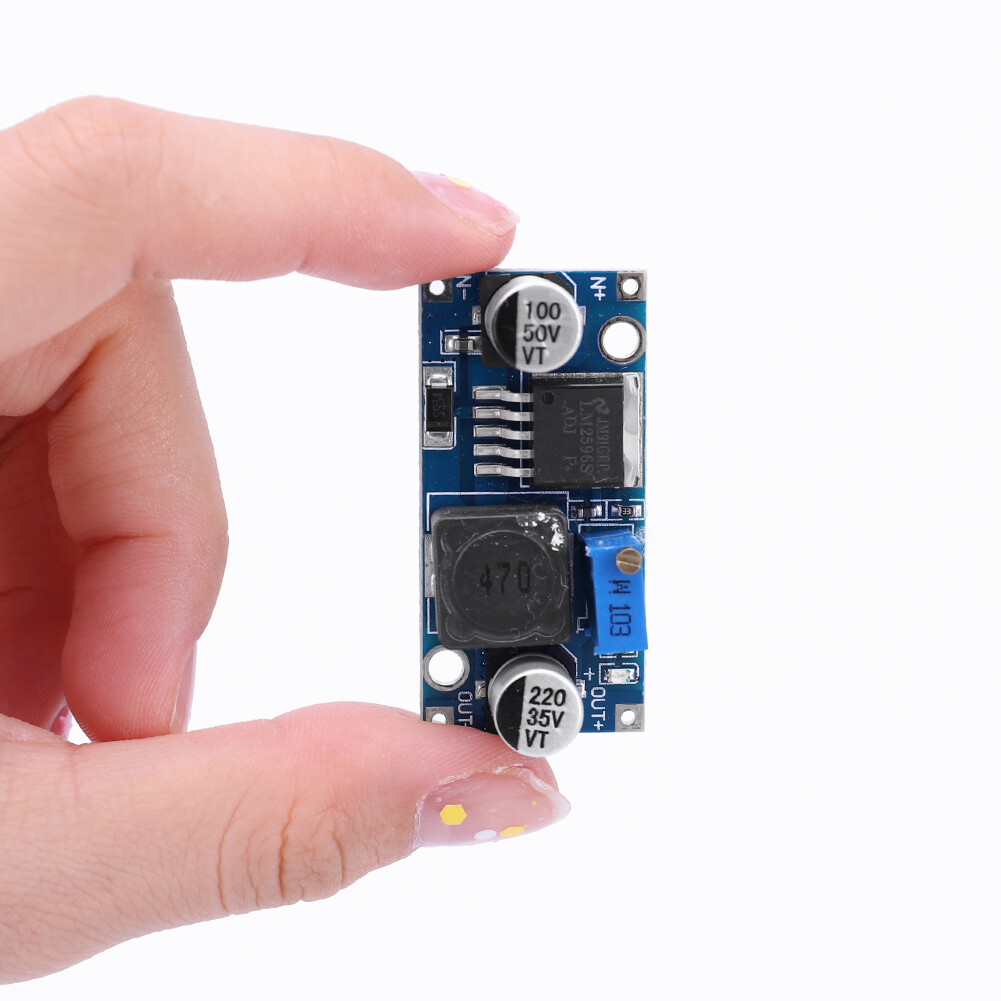

- Dimensions: 43mm x 21mm x 14mm (Length x Width x Height)
Key Features:

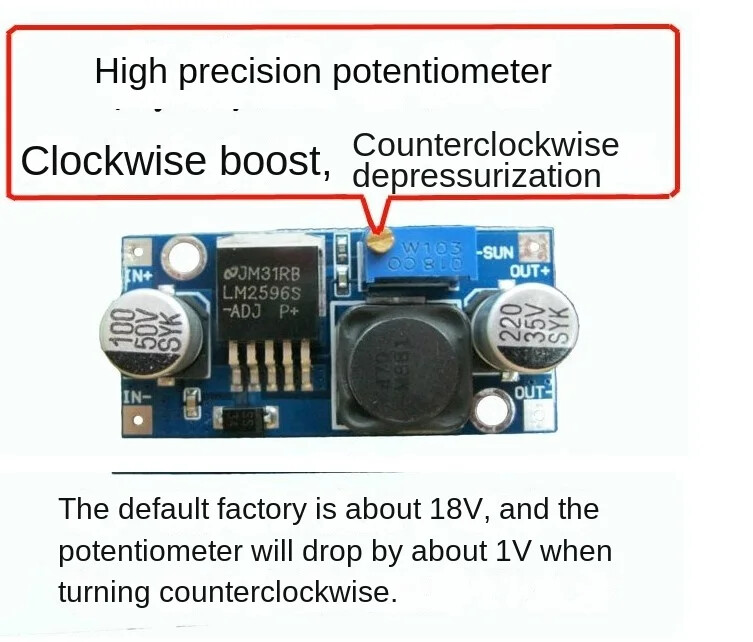

- Adjustable Output: Allows precise control of output voltage within the specified range.
- High Efficiency: Ensures energy-saving performance with up to 92% conversion efficiency.
- Low Ripple Output: Provides stable and reliable voltage with minimal ripple.
- Broad Compatibility: Supports a wide range of input voltages, making it versatile for various applications.
- Compact Size: Easy to integrate into different projects due to its small footprint.
Installation Guidelines:

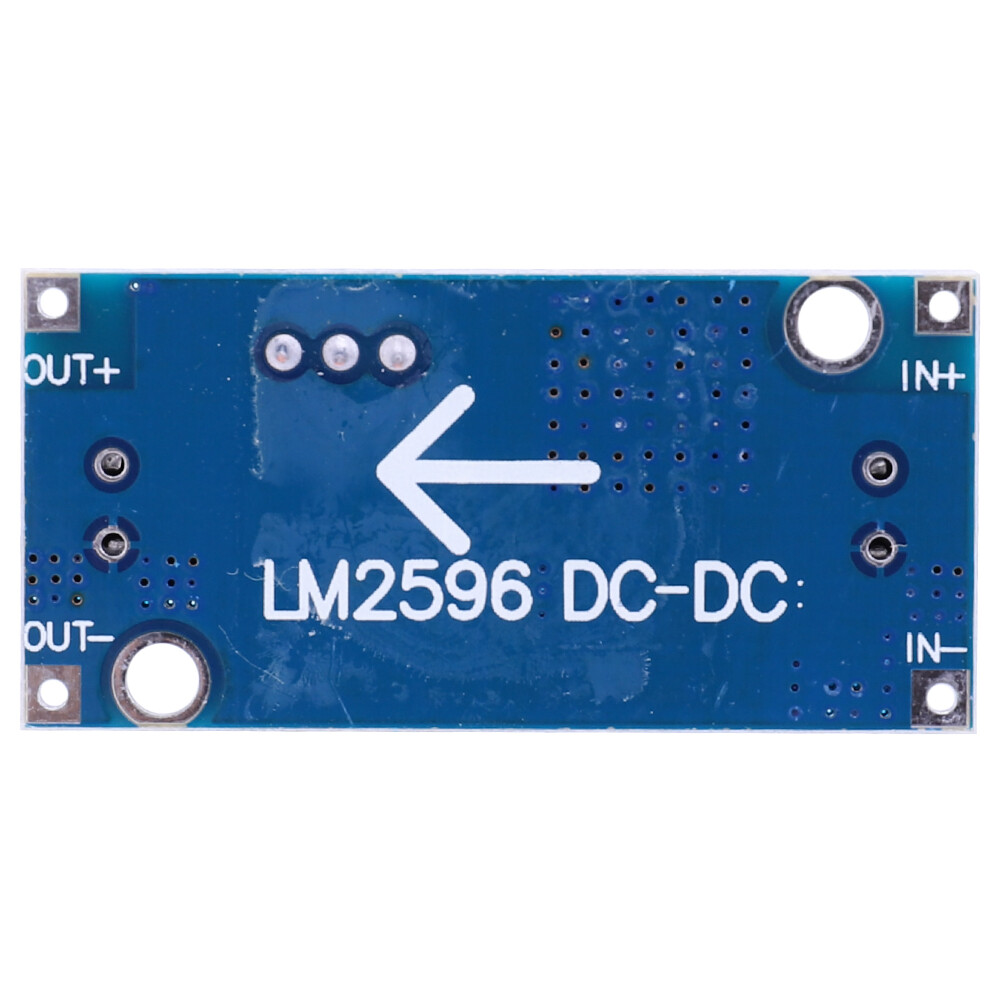

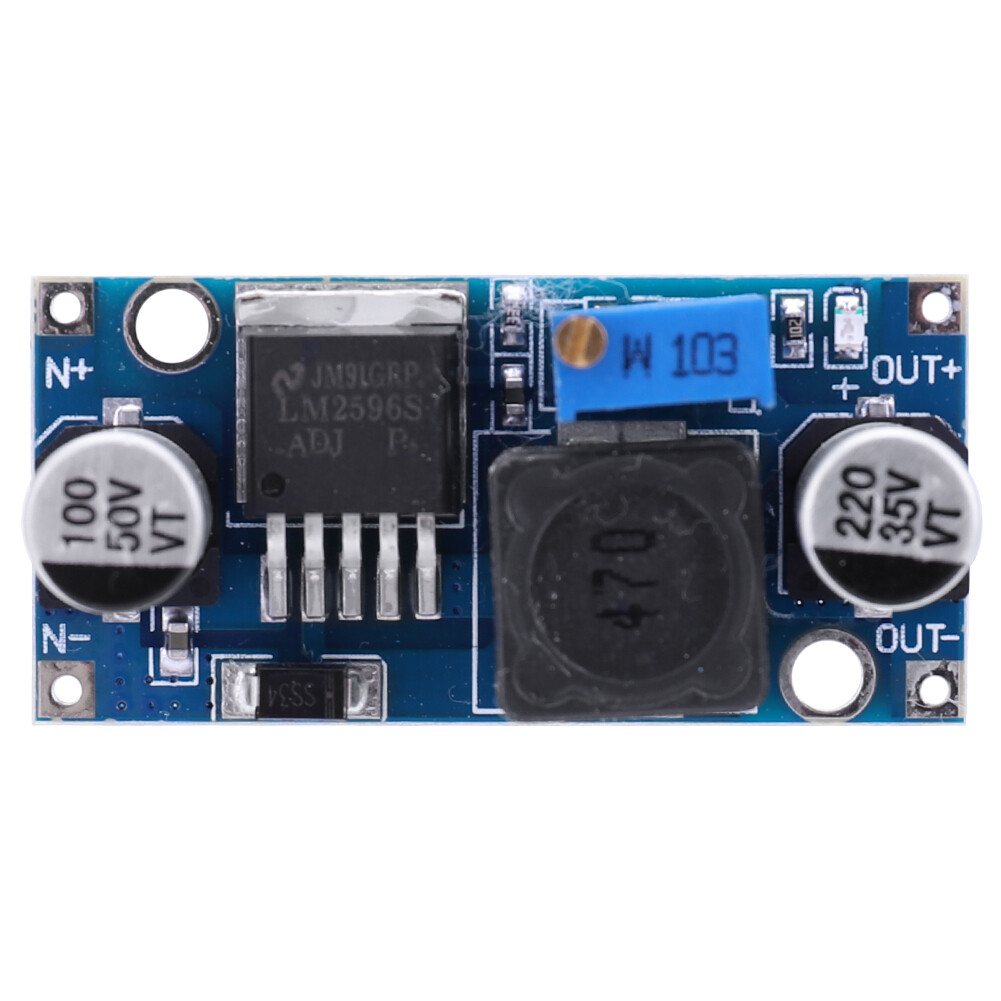

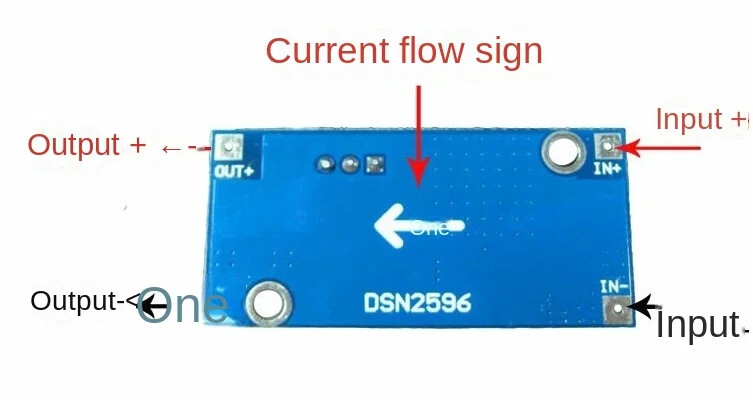

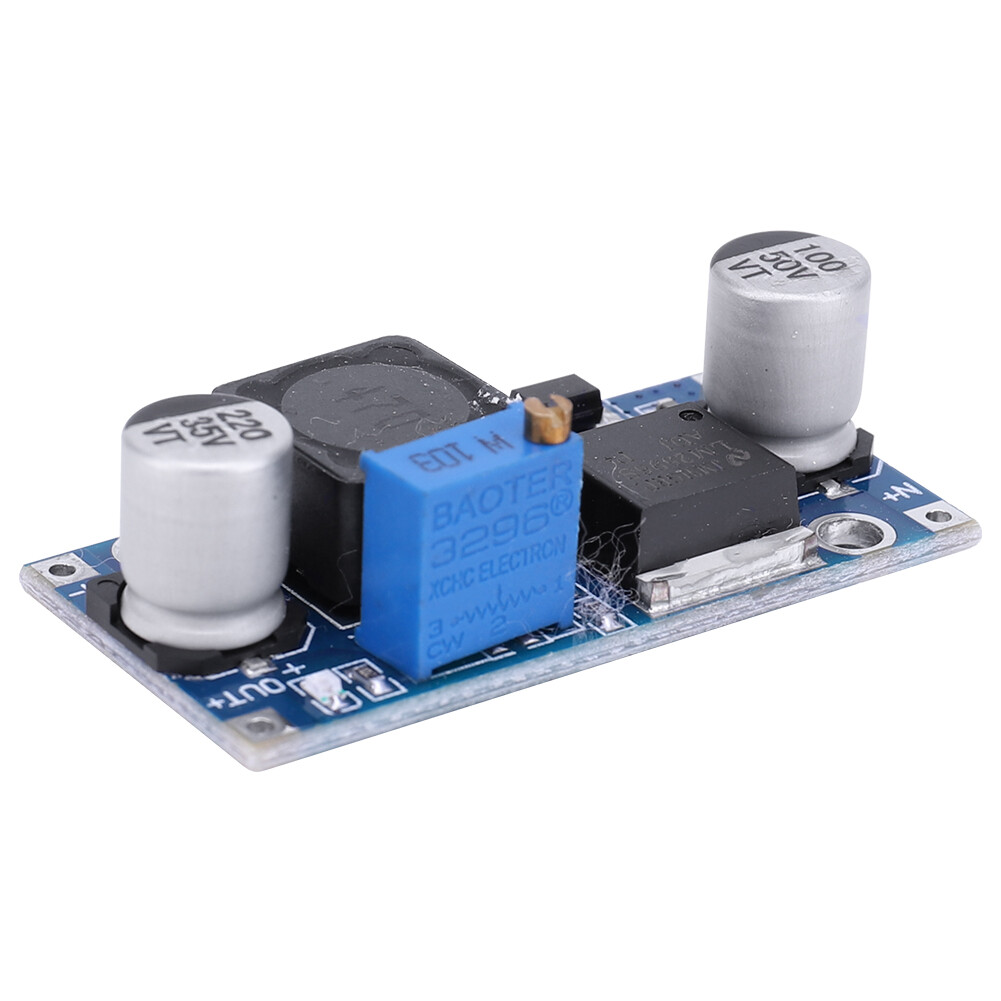

- IN+ (Input Positive), IN- (Input Negative)
- OUT+ (Output Positive), OUT- (Output Negative)
- Note: It’s a step-down module and cannot boost voltage. For outputs over 2.5A or 10W, a heatsink is recommended for prolonged use.
Additional Information:
- The module features strong load regulation, with tests showing less than 1% regulation rate at 1A load when converting from 12V to 5V.
- Designed for applications requiring efficient voltage reduction without significant power loss.
Package included:
1Pc *Power Supply Module
