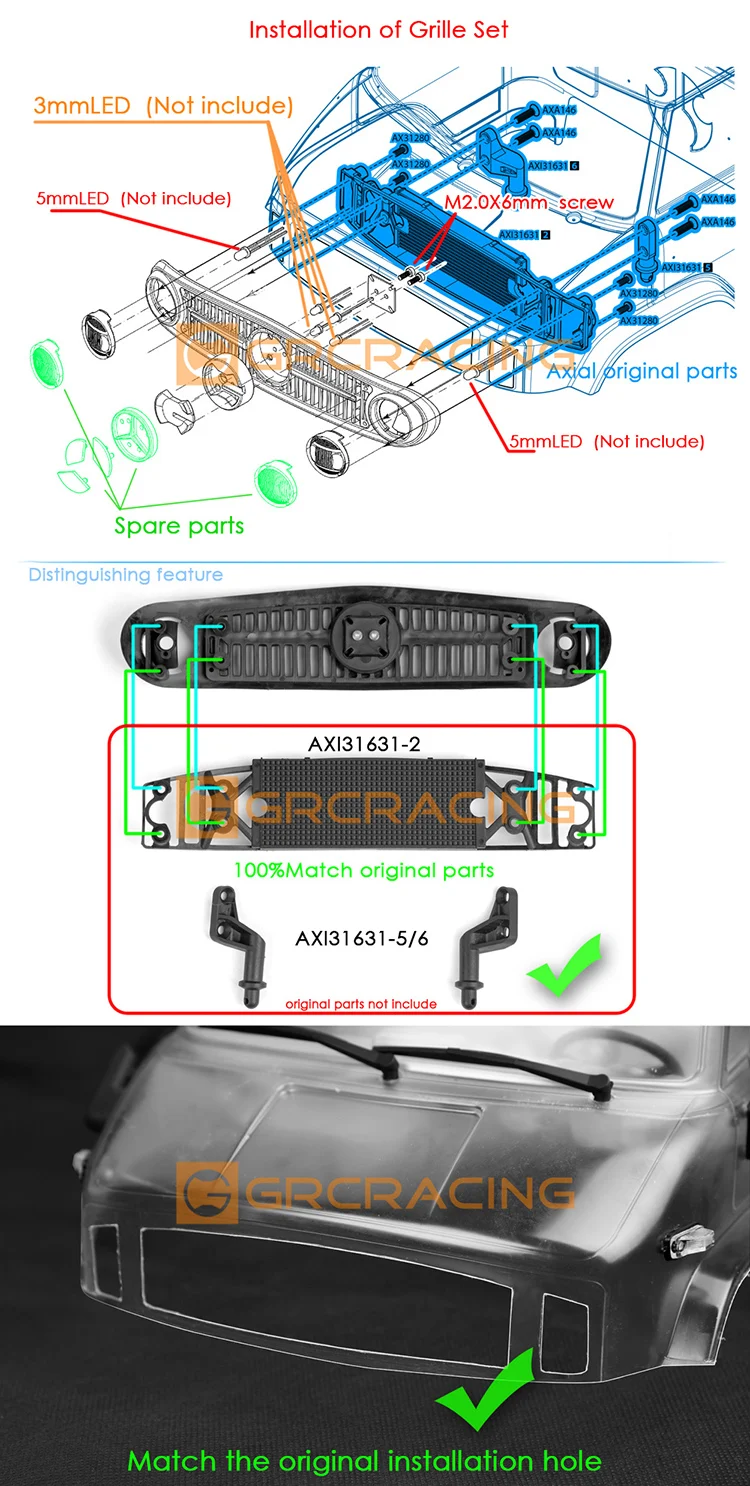

Installation instructions for the grille kit:
suitable for the installation holes of the original car shell,
and also suitable for the replacement of models that have already installed the original grille.
No additional shell cutting is required, and the original grille can be directly replaced by removing it.

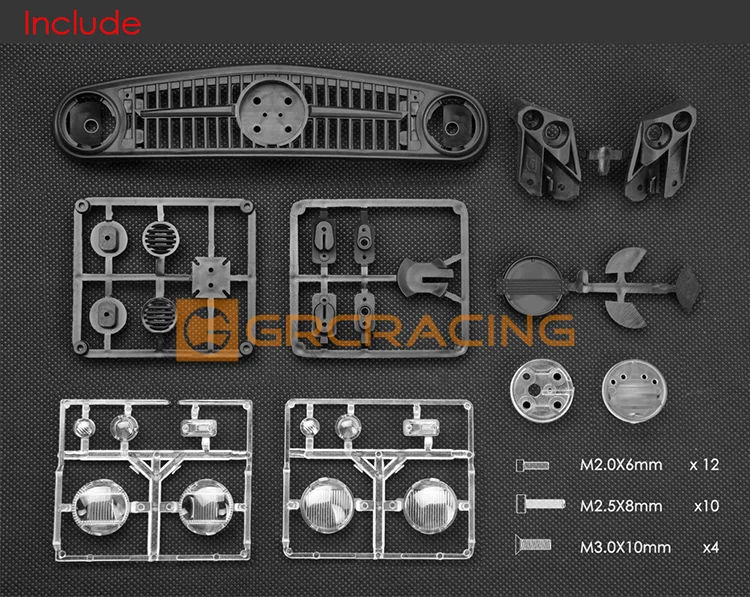

The kit comes standard with four car logos: the opaque "G" logo and the three pronged logo,
and the transparent "G" logo and the three pronged logo.

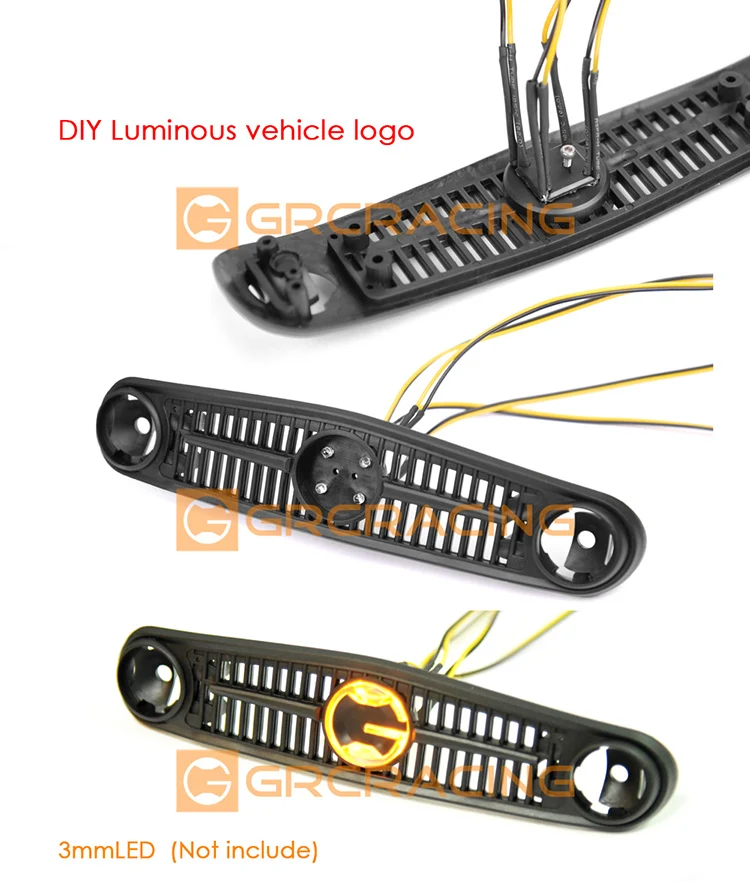

The back of the middle logo is equipped with a 3MM straw hat LED installation hole,
and players can DIY different LED colors according to their preferences.
(LED for display only, not included in the kit) Installation reference:

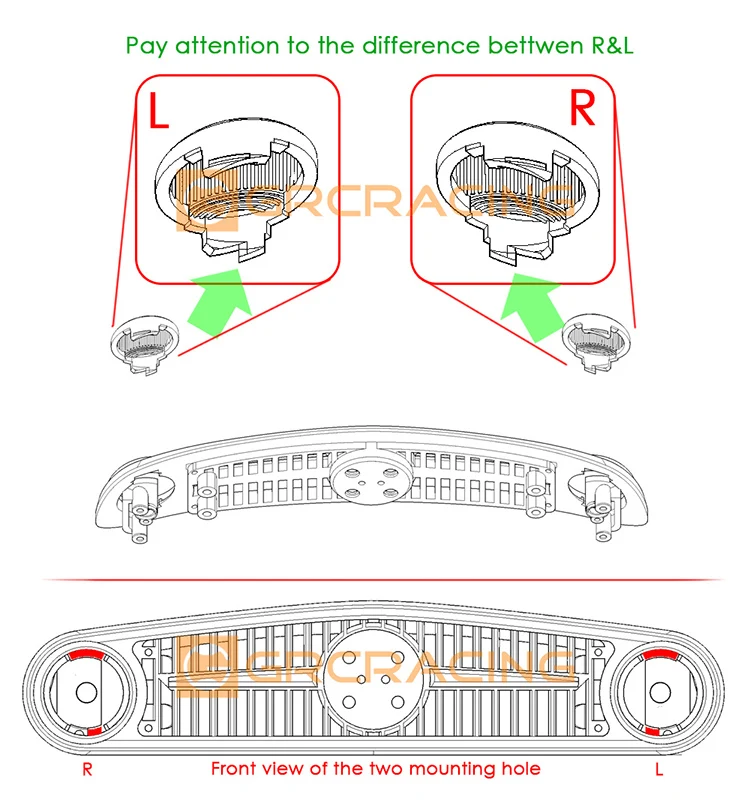

Installation instructions for front turn signal lights: (Installation holes need to be cut on the car shell.
Please refer to the illustration below for the opening of the car shell)
The installation hole for the steering LED is 3mm.
For LEDs that have already been wired, please refer to the instructions in the following figure (marked in pink font).

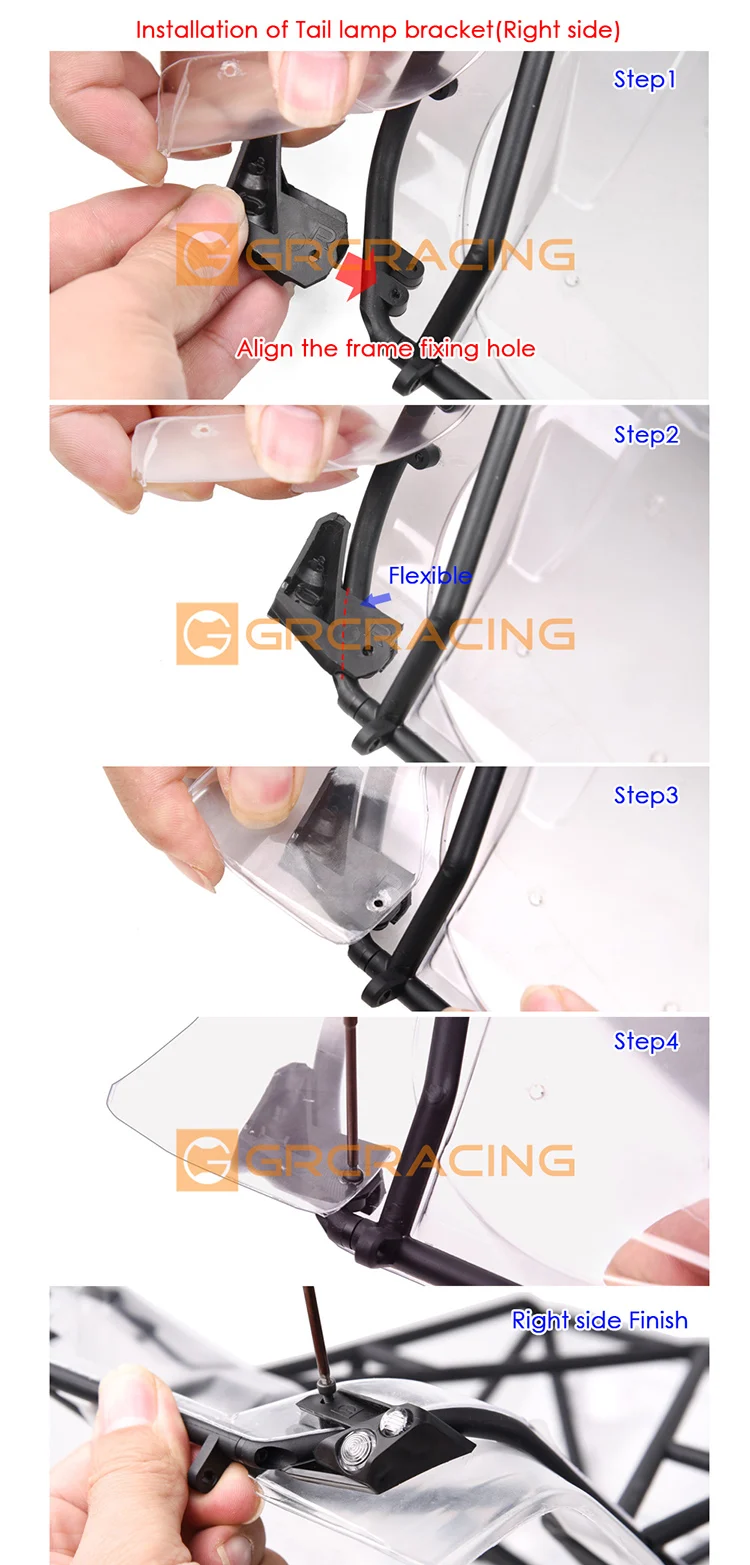

After cutting open the rear fixing bracket, the installation strength will not be affected

尾灯罩套件安装说明:(UMG10 4×4原厂车架无需改动直接安装 UMG10 6×6不支持安装)
