Description
SPECIFICATIONS
Brand Name: grcracing
For Vehicle Type: Cars
Hign-concerned Chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Plastic
Origin: Mainland China
Recommend Age: 14+y
Use: Vehicles & Remote Control Toys

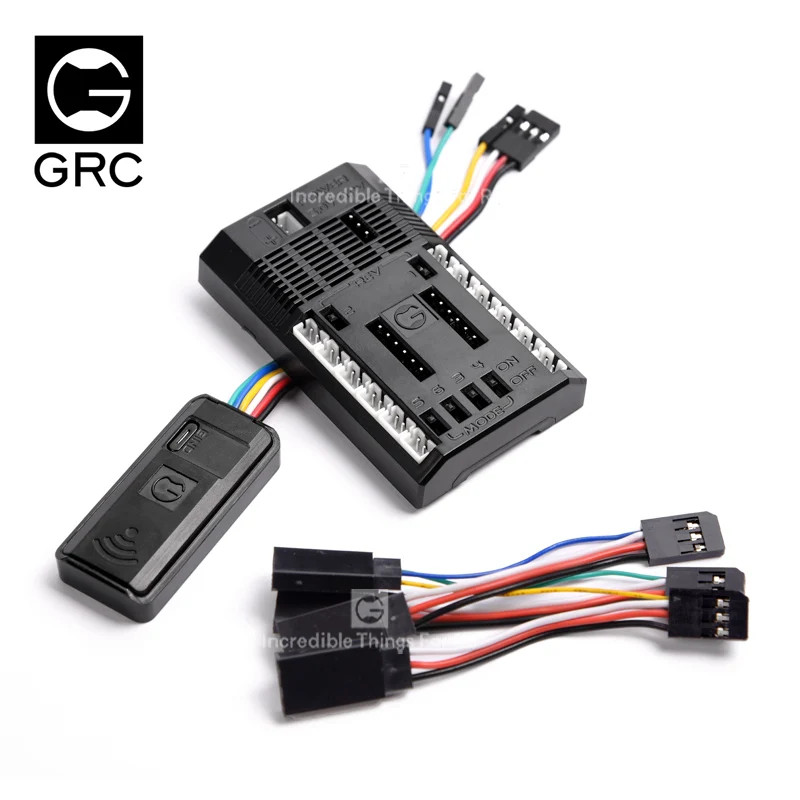

Introduction: The first RC remote-controlled model car with wireless linkage lighting control, achieving wireless four channel linkage between the car shell and frame, 12 light outputs, and high-power load capacity. Ordinary waterproofing (splashing water).
MPN.: G150 (wireless light control)
G. W.: 60g (wireless light control)
For: Most remote-controlled model cars for general use
Attention: The wireless light control transmitter is only suitable for voltages below 6V (including 6V). Users using high-voltage servos need to control the voltage to be used at 6V. There is a risk of burning out when using a voltage exceeding 6V.
The adaptive voltage of the lamp control receiver is 5-9V, which can be directly powered for 2S, but cannot be directly connected to a 3S battery (it will burn out the receiver).
MPN.: G150 (wireless light control)
G. W.: 60g (wireless light control)
For: Most remote-controlled model cars for general use
Attention: The wireless light control transmitter is only suitable for voltages below 6V (including 6V). Users using high-voltage servos need to control the voltage to be used at 6V. There is a risk of burning out when using a voltage exceeding 6V.
The adaptive voltage of the lamp control receiver is 5-9V, which can be directly powered for 2S, but cannot be directly connected to a 3S battery (it will burn out the receiver).

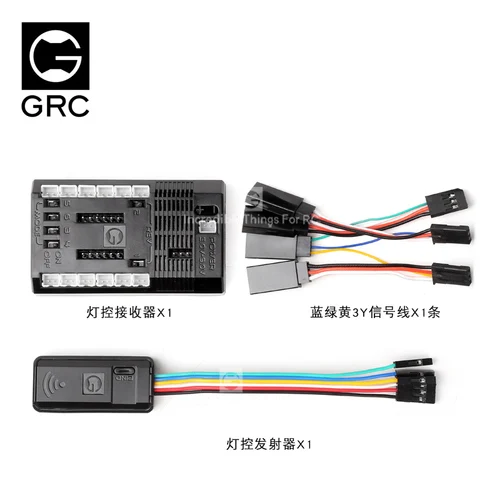

List:
Control receiver installation reference:
Signal transmitter installation reference:
对照说明书按照颜色依次正确接插即可.
英文版:
Attention: The conventional receiver is only equipped with one first channel output socket. In this case,
an additional Y-line needs to be prepared for signal transfer, as shown in the following figure:
